Does my Haas have the wireless network feature enabled?
Overview
Haas Next Gen Controls (NGC) have a paid wireless feature. This guide will help determine if your machine has the feature and if it's enabled.
Checking for Wireless Feature
- Press SETTING button
- Go to Network tab at the top of the screen
- Go to Wireless Connection tab

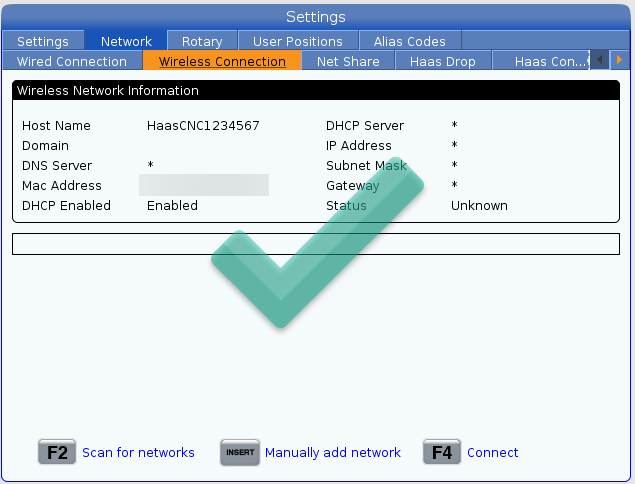

- Wireless is available

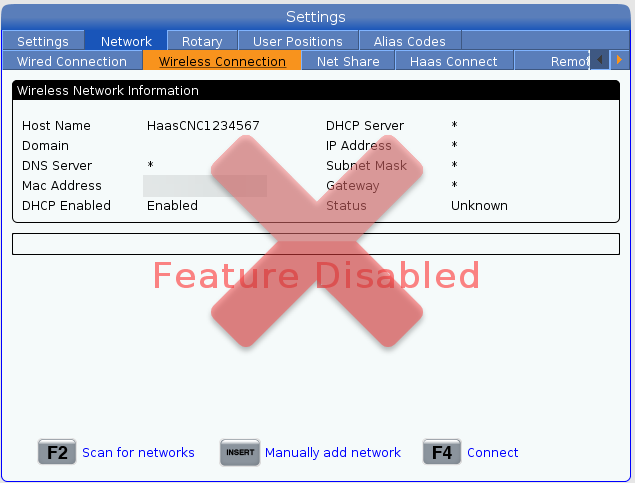

- Wireless is not available as indicated by "Feature Disabled" in red
