How to Install Predator CNC Editor v12

How to Install Predator CNC Editor v12

Overview

The following article will have you download, install, and license Predator CNC Editor v12.

Requirements

  1. Local Administrator Rights
  2. Predator CNC Editor Software (link)
  3. Predator CNC Editor License
    4. InfoIf you do not have a license, follow How to Obtain Network ID to License Predator Products

Installation

  1. Extract files and run SetupEditor.exe

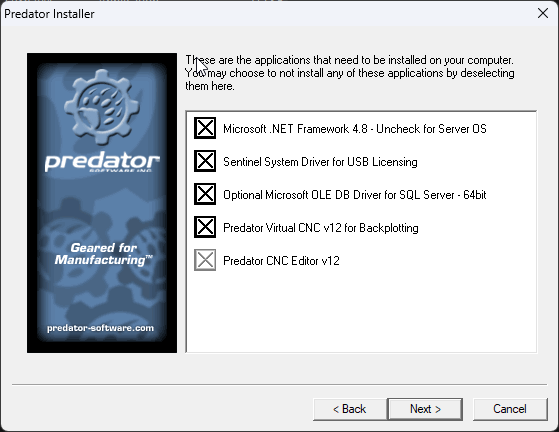

  2. Leaving all applications selected, click Next

  3. During Sentinel System Driver Installation Wizard, be sure to select Yes when during Windows Firewall detected! page

  4. Complete Predator Virtual CNC v12 for Backplotting and Predator CNC Editor v12 Installation Wizards

Licensing

  1. From the desktop, locate the orange Predator CNC Editor v12 shortcut
  2. While holding the Shift key, right-click the Predator CNC Editor v12 shortcut and click Run as administrator

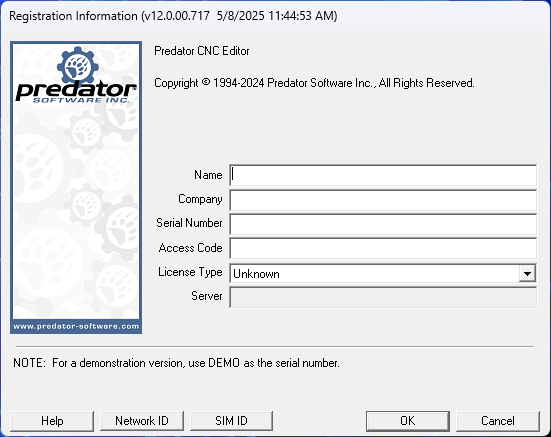

  3. Upon success, the Registration Information screen will appear
  4. Fill out Name and Company
  5. Copy and paste Serial Number and Access Code into applicable fields
  6. Leave License Type set to "Unknown"
    1. If using a Floating License Manager (FLM), do the following:
      1. Set License Type set to "Floating License Manager"
      2. Fill out Server (this is the server hostname or IP address of the FLM Server)
  7. Click OK when done

  8. Upon success, Predator CNC Editor v12 will launch
