How to Obtain Mitsubishi NC Serial Number to Get MTConnect
Overview
To obtain a MTConnect Adapter for Mitsubishi M700 and M800 controls, it is necessary to gather the main system version number. This article will provide instructions on how to obtain this information so you can provide it to your Account Executive.

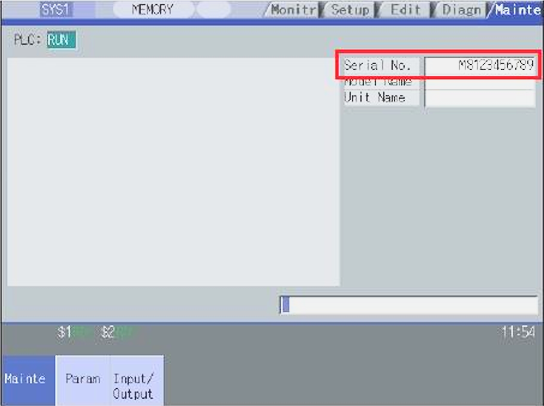

Determine Software Version Number from Maintenance Screen
From Operation Panel
- Press MAINTE button
- Press Mainte softkey
- The NC Serial Number can be found in the upper right corner of the Maintenance screen
From a Touch Screen Display
- Press the Mainte tab
- Press Mainte softkey
- The NC Serial Number can be found in the upper right corner of the Maintenance screen

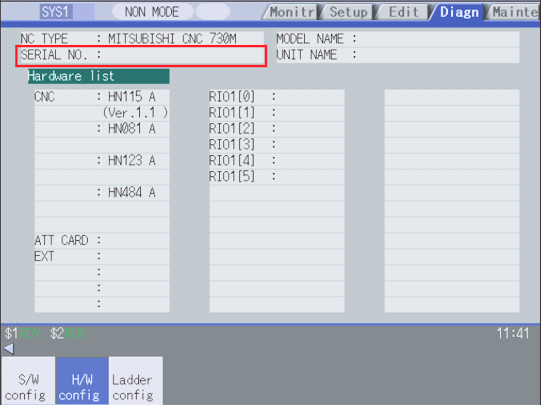

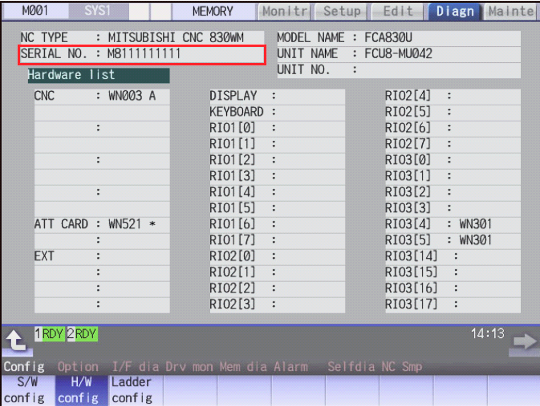

Determine Software Version Number from Diagnosis Screen
From Operation Panel
- Press DIAGN button
- Press H/W config softkey
- The NC Serial Number can be found in the upper left corner of the Hardware Configuration screen
From a Touch Screen Display
- Press the Diagn tab
- At the bottom of the screen that appears, if the H/W config button is not visible then press the Config button to bring up the Configuration screen selections.
- Press the H/W config softkey
- The NC Serial Number can be found in the upper left corner of the Hardware Configuration screen

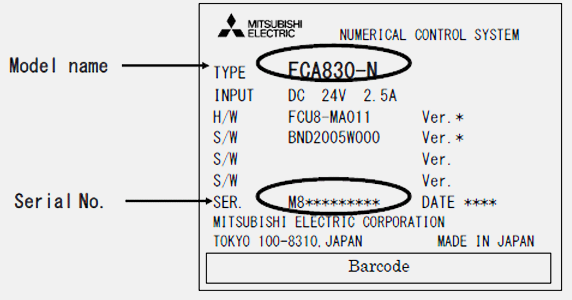

Label on NC Control Unit

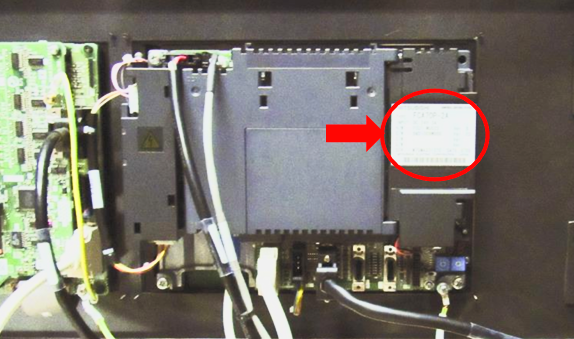

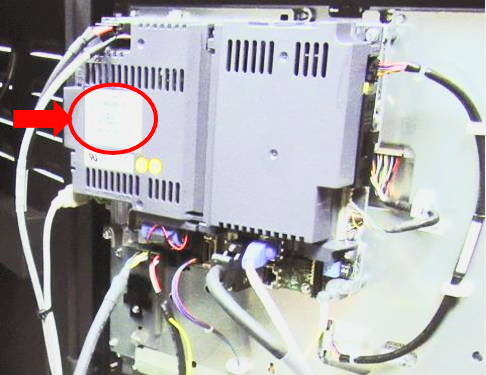

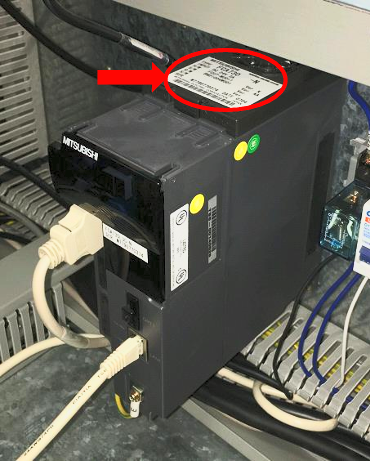

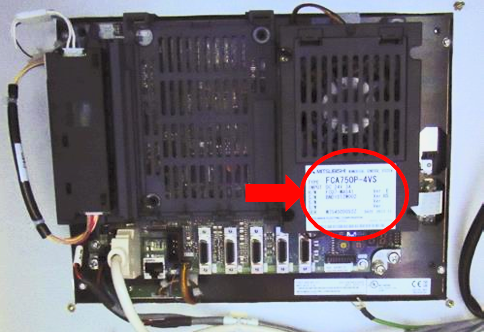

- Locate the NC control unit, this is commonly behind the LCD panel or in the electrical cabinet.
