Predator CNC Editor was unable to connect to the template database...

Predator CNC Editor was unable to connect to the template database...

Problem

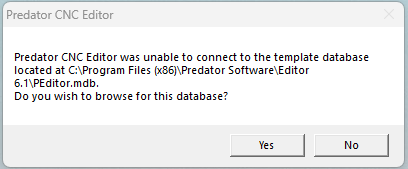

The following error appears after updating Predator CNC Editor from a previous version.

Reason

The latest version of Predator CNC Editor, along with many other Predator products, moved support files from C:\Program Files to C:\Predator Software. This requires some changes to honor the new paths.

Solution

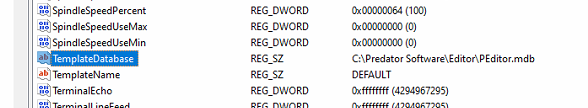

Modify the Windows Registry string for "TemplateDatabase" located in "Computer\HKEY_CURRENT_USER\Software\Predator\PEditor\Settings\" to point to the current template database location, this should be "C:\Predator Software\Editor\PEditor.mdb"
