Why are most Okuma MTConnect tags UNAVAILABLE

Why are most Okuma MTConnect tags UNAVAILABLE

Problem

The MTConnect Agent on the Okuma control appears to be working, but most tags are UNAVAILABLE

Reason

Upon installation of the MTConnect Adapter, the Enable Monitoring Tags checkbox was not checked

Solution

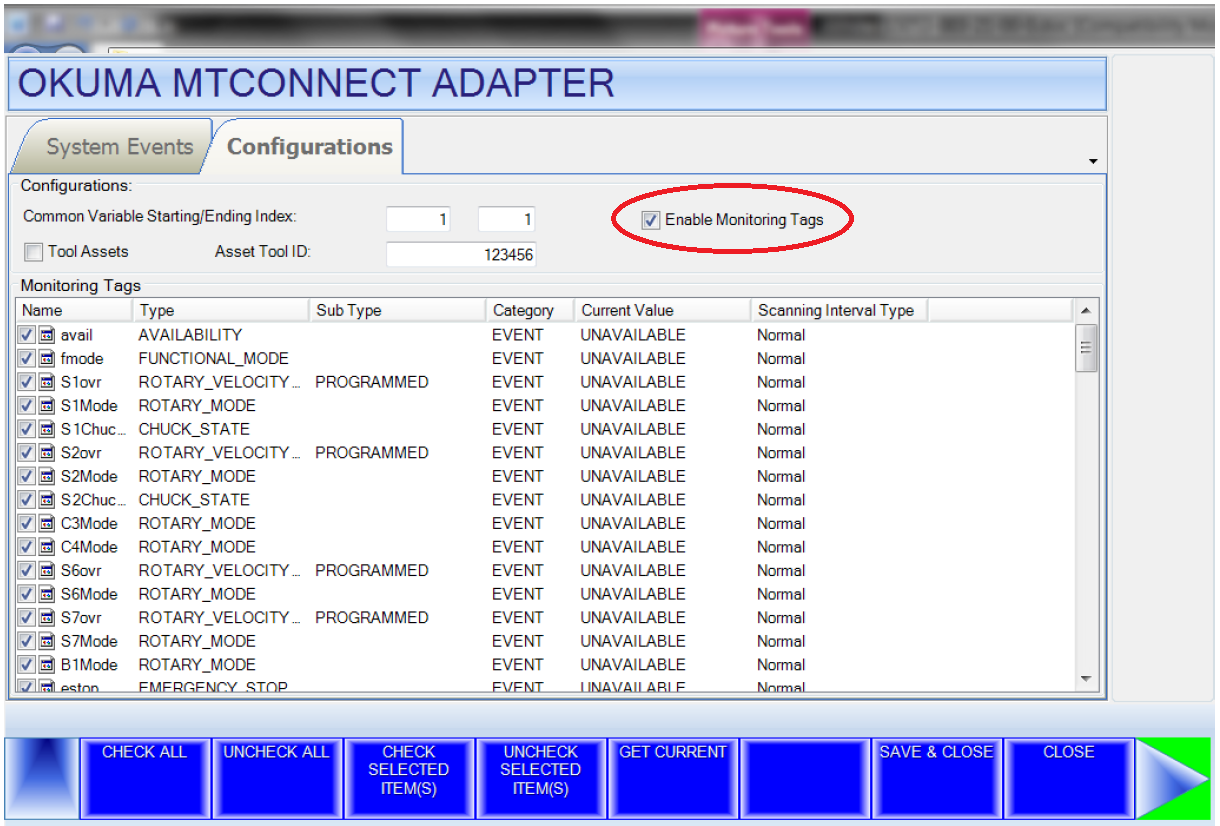

  1. Open the MTConnect Adapter, go to the Configurations tab, check the Enable Monitoring Tags box; click SAVE & CLOSE when done
    1. If prompted for the username and password, use the following:
      1. Username: administrator
      2. Password: okuma+osp
