How to Setup FileZilla for LAN Connect

How to Setup FileZilla for LAN Connect

Sample LANCNC.INI file for LAN Connect

IP address=192.168.150.222
IP mask=255.255.255.0
IP gateway=192.168.150.1
IP dns=0.0.0.0
USER=SFA
PASSWORD=test

Installation of FileZilla Client for LAN Connect

  1. Navigate to https://filezilla-project.org/download.php and download the software
    1. Run the installer while declining to install any extra software

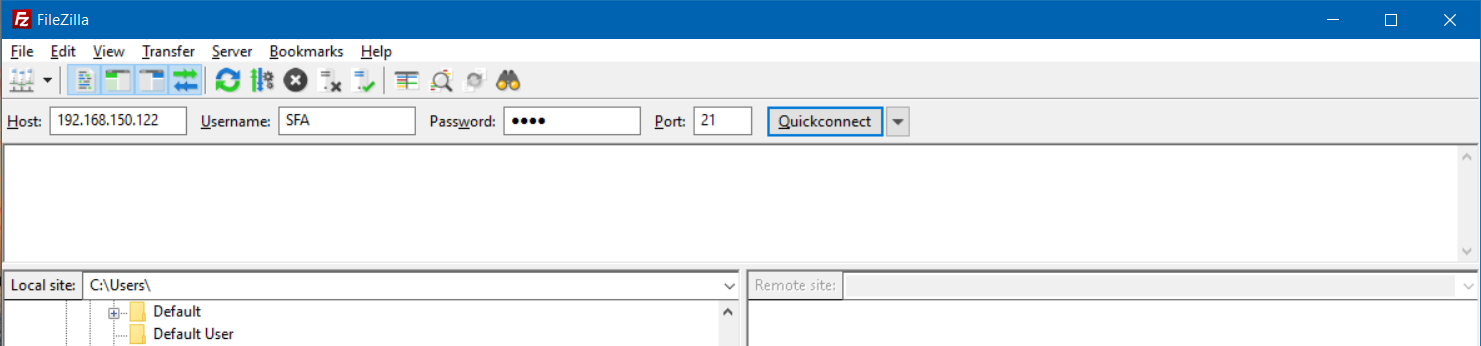

  2. Open FileZilla Client For “Host:” enter the IP address of the LAN Connect unit
    1. For “Username:” and “Password:” enter the login credentials for the LAN Connect, if specified in the .INI file as above
    2. Otherwise, leave these fields blank to allow anonymous login
  3. For “Port:” enter 21 if it is not already entered into that field
  4. Test the connection using the “Quickconnect” button
    1. If unsuccessful, check all FTP settings on the host PC and the CNC
    2. If successful, you are done configuring the software
